1.Preparation #

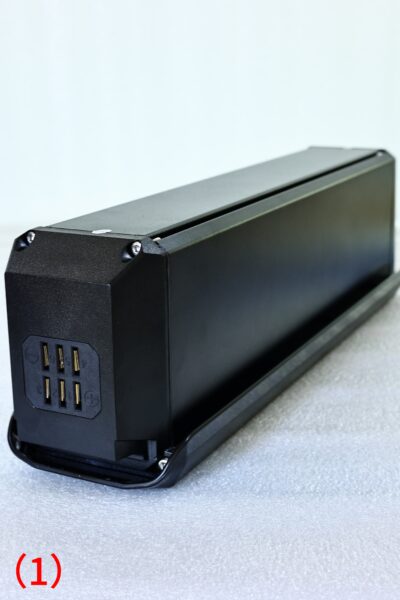

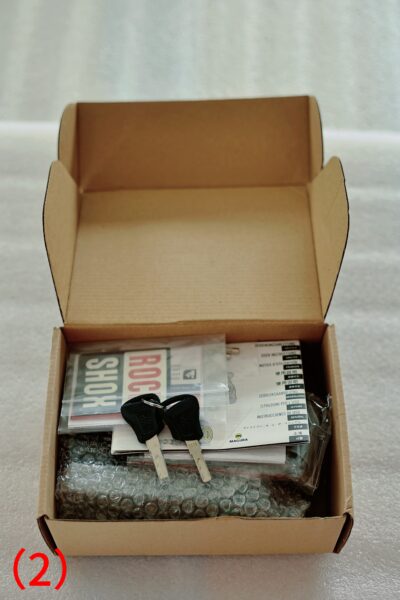

Prepare the battery you received, as shown in image (1), along with the battery key, as shown in image (2). The battery key is located inside the charger box.
2.Precautions #

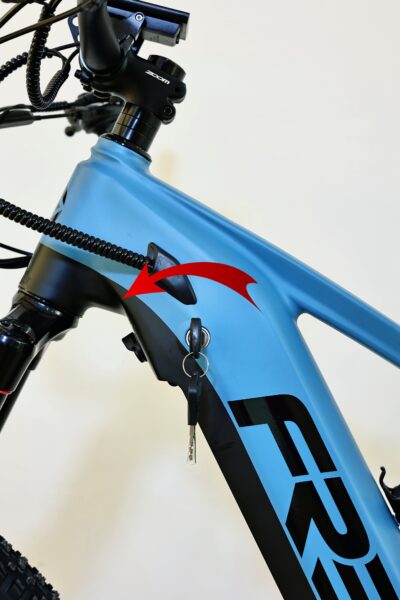

Rotate the key in the direction of the arrow to retract the lock cylinder before battery installation.
3.Istallation Method #

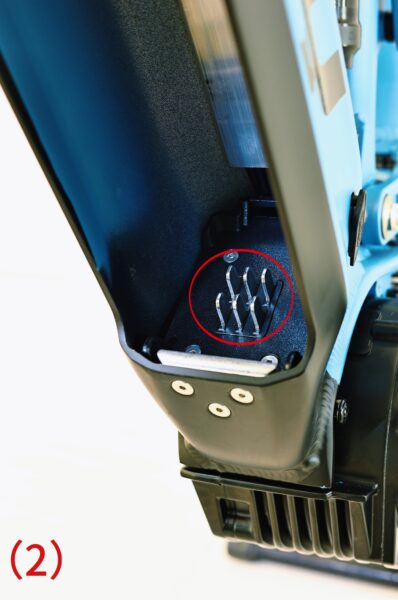

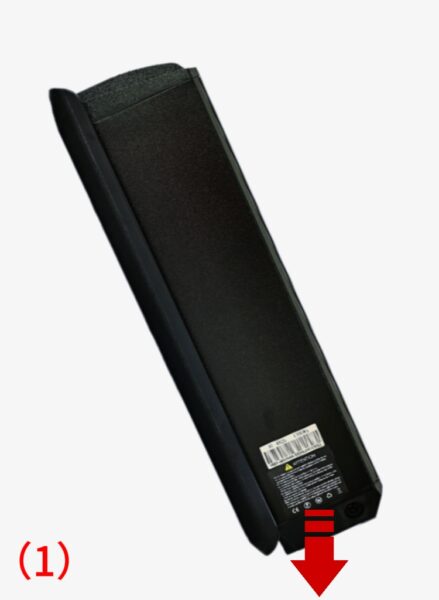

1.When installing the battery, ensure that the marked side is facing down, as shown in image (1), insert the pins on the bottom base of the battery tube, as illustrated in image (2).
2.Hold the battery with both hands and slide it into the battery tube. You should hear a “ka” sound when it is properly installed.

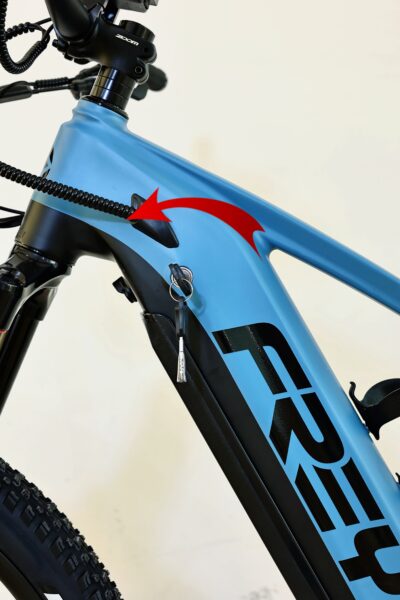

3.Once the battery is installed, rotate the key in the direction of the arrow to extend the lock cylinder and secure the battery. (The key can only be removed when it is in the locked position.)
4.Removal Method #
1.Insert the key and rotate it in the direction of the arrow to retract the lock cylinder and unlock the battery.

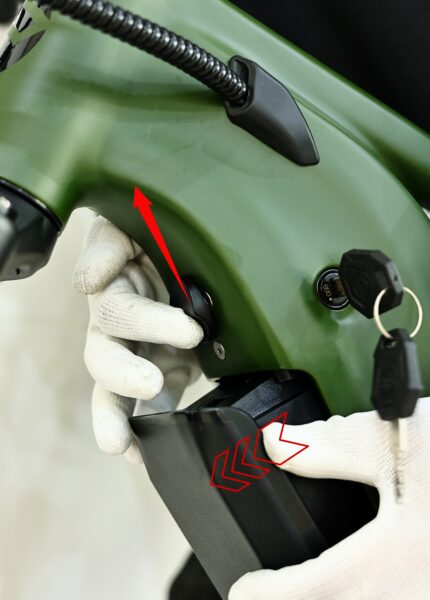

2.With your right thumb, press and rotate the release lever in the direction of the arrow while supporting the battery with your other fingers. Use your left thumb to slowly push the battery down while keeping the other fingers in place to prevent the battery from falling.

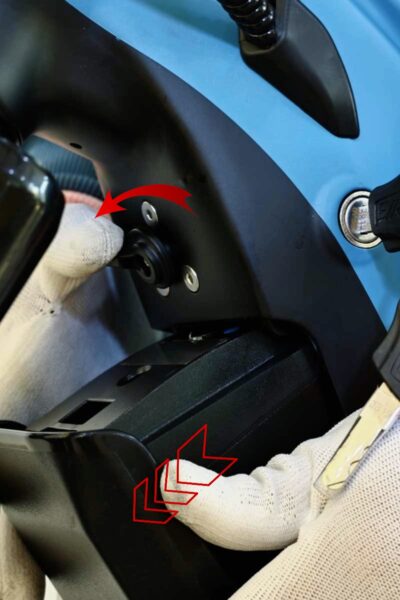

3.The Assembly method for the round release lever is the same, but the removal method differs. With your right index finger, push the release lever upward in the direction of the arrow while supporting the battery with your other fingers. Use your left thumb to slowly push the battery down, keeping your other fingers in place to prevent it from falling.
4.Carefully remove the battery.
