1.Preparation #

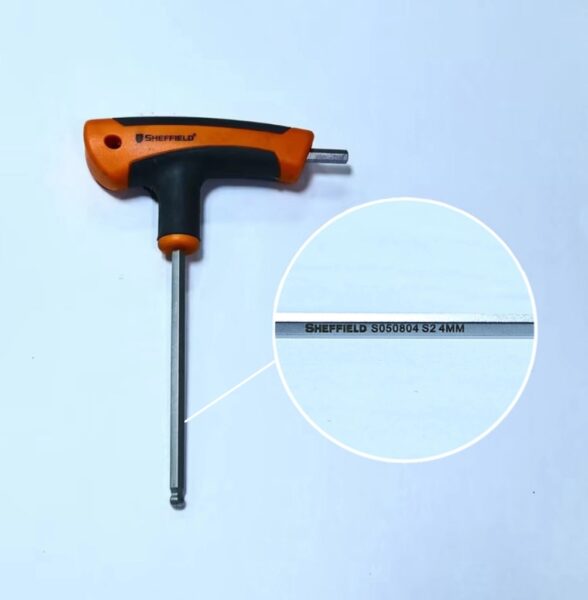

You will need a 4mm Allen wrench, as shown in the image below.
2.Assembly Steps #

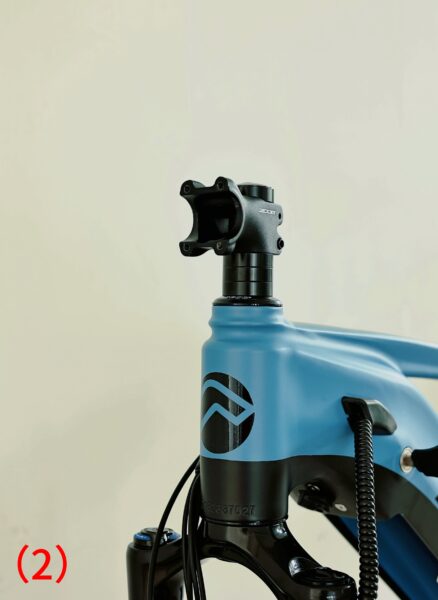

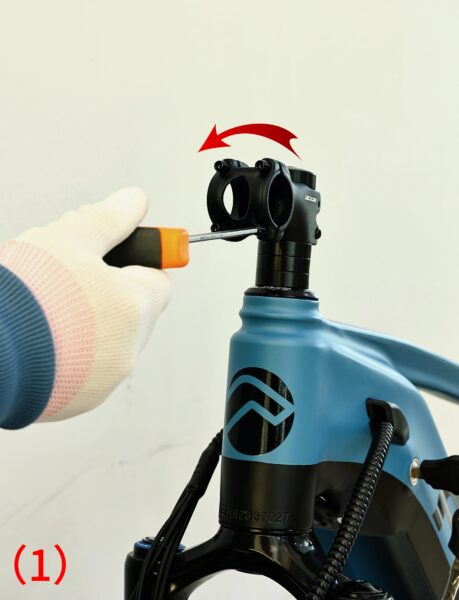

1.Remove the four fixing screws on the handlebar clamp in the direction of the arrow, as shown in image (1). Then, take off the handlebar clamp, as shown in image (2).

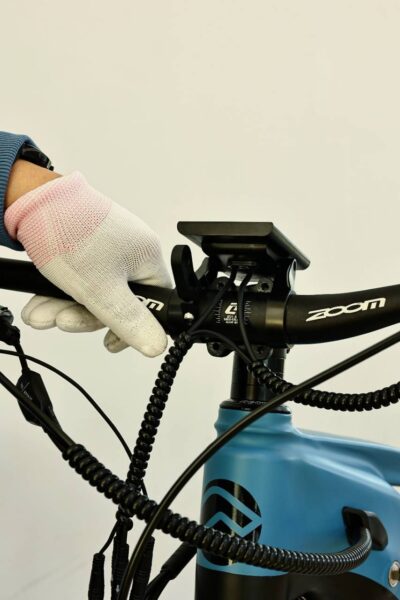

2.Insert the handlebar.
3.Install the handlebar clamp and secure it with the four fixing screws in the direction of the arrow. (Do not tighten the screws completely yet.)

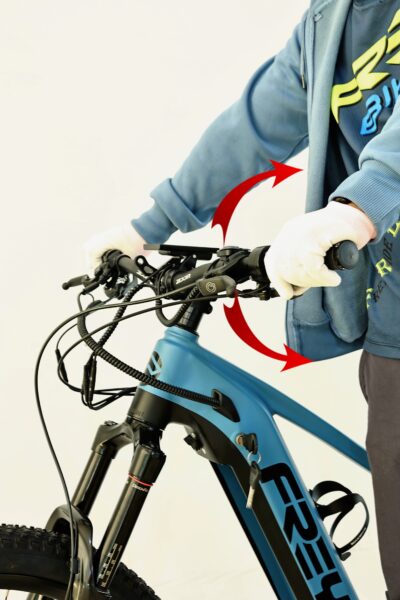

4.Adjust the handlebar position to find a comfortable angle that suits your riding habits. You can raise or lower it as needed.

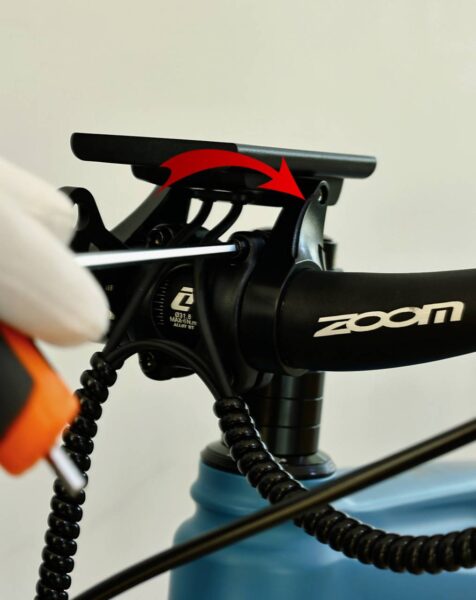

5.Tighten the four screws on the handlebar clamp in the direction of the arrow. The torque is around 6 N·m.

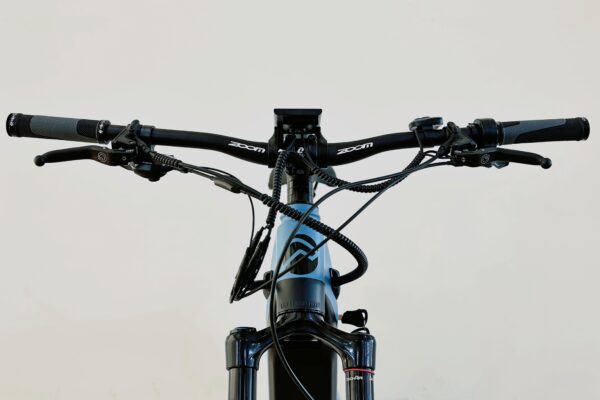

3.Handlebar Assembly Completed Diagram #
