Pedals Installation Instructions

Table of Contents

1.Preparation
2.Precautions
3.Install the left pedal
4.Install the right pedal

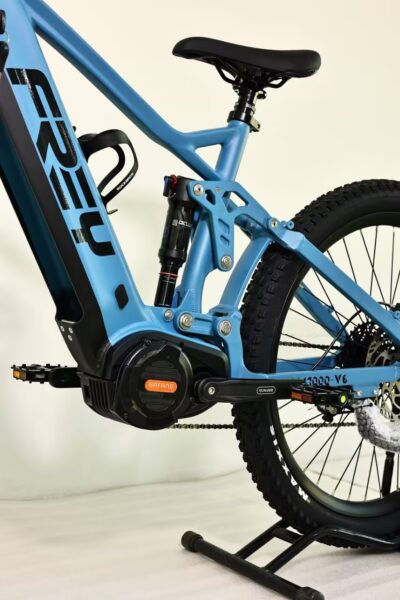

5.Installation Completed

1.Preparation #

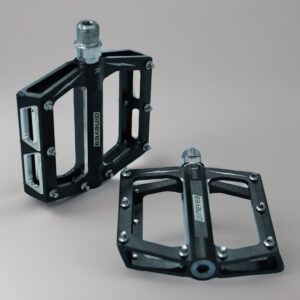

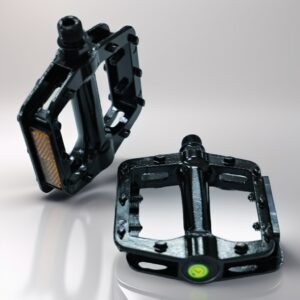

（1）The pedals you received are one of the types shown in the image below. The Assembly method for both types of pedals is the same.

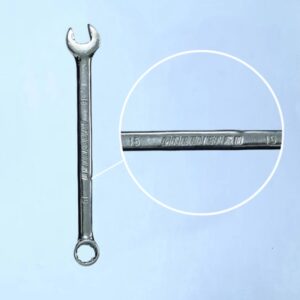

（2）You will need a 15mm open-end wrench.

(3) “Pedal L” corresponds to “Crank L,” and “Pedal R” corresponds to “Crank R.”

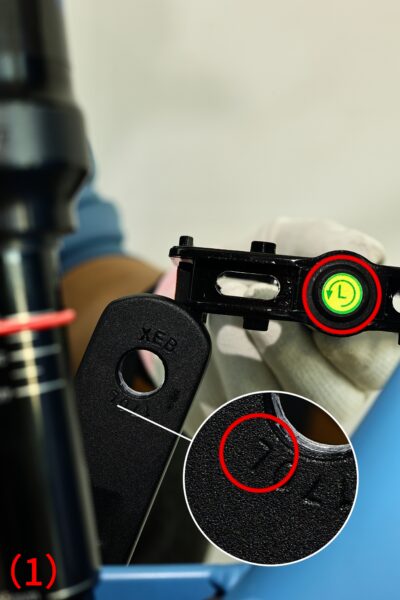

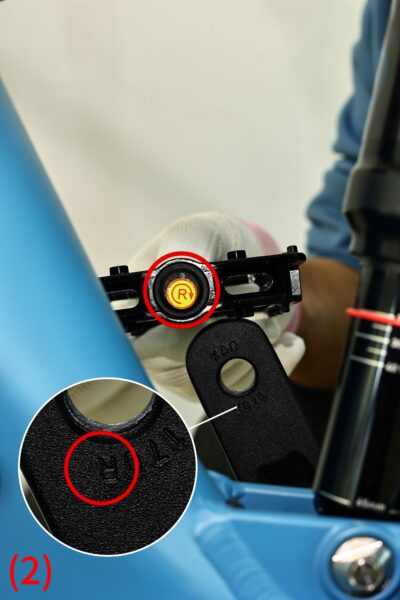

To differentiate between the two pedals, the L and R markings are located differently. For example, images 1 and 2 show pedals with reflectors, where the markings are at the rear end of the pedal.

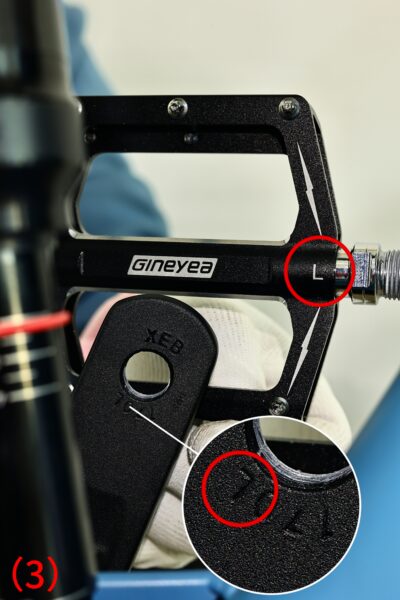

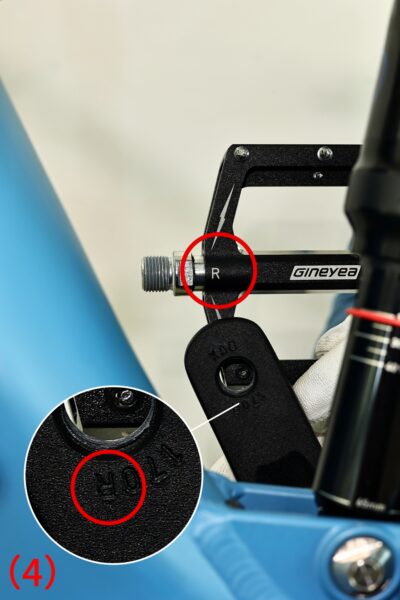

（4）Images 3 and 4 show pedals where the markings are located on the pedal’s surface, as illustrated.

2.Precautions #

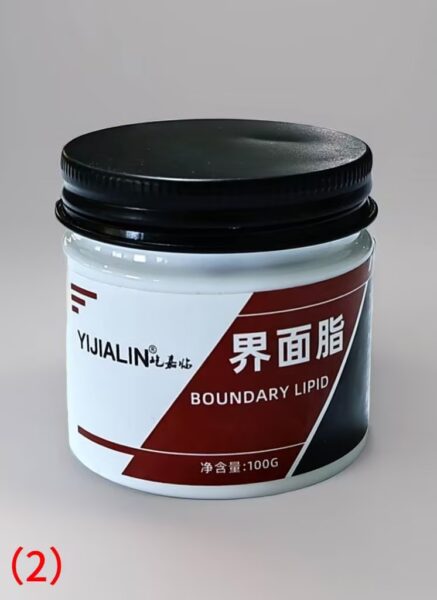

（1）Apply an appropriate amount of boundary lipidto the pedal threads to facilitate Assembly and removal:
For example, in image 1, a suitable amount of boundary lipid has been applied; image 2 shows reference for you.

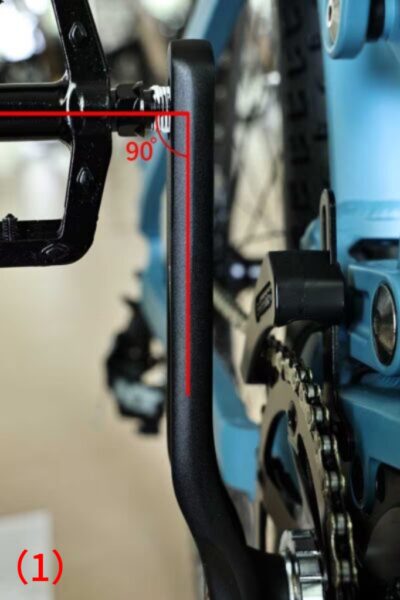

（2）When installing the pedals, ensure that the pedal and crank are at a 90° angle to allow for smooth Assembly, as shown in image 1.

3.Install the left pedal #

Using the 15mm open-end wrench, rotate in the direction of the arrow until the threads are fully engaged in the crank. The recommended locking torque is 10-15 N·m.

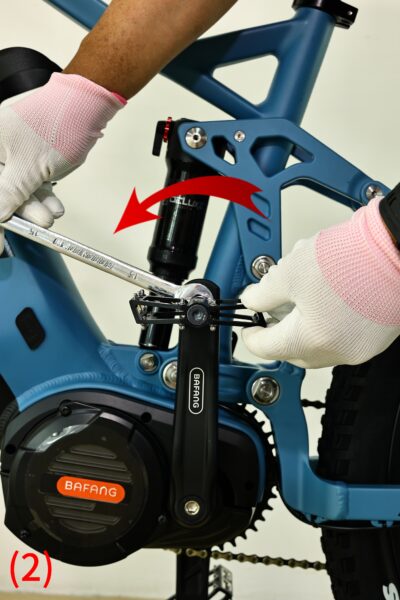

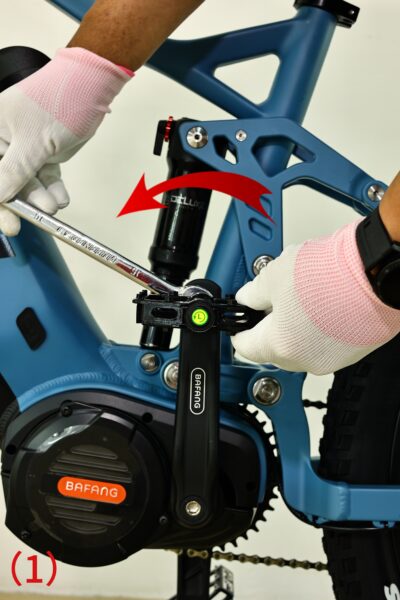

Images 1 and 2 show that the Assembly method for both types of pedals is the same.

4.Install the right pedal #

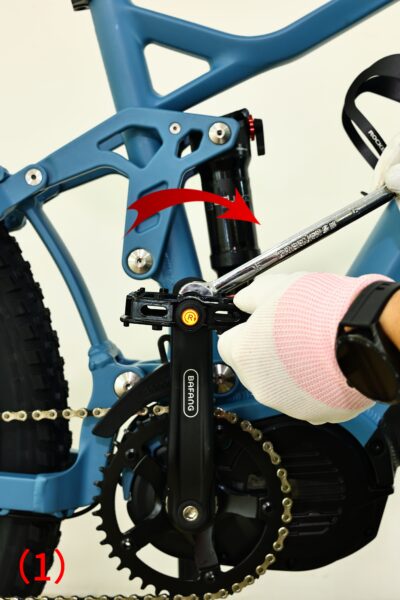

Using the 15mm open-end wrench, rotate in the direction of the arrow until the threads are fully engaged in the crank. The recommended locking torque is 10-15 N·m.

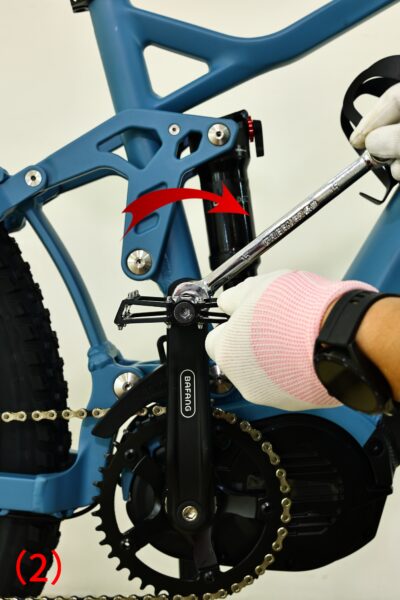

Images 1 and 2 show that the Assembly method for both types of pedals is the same.
