FREY CC FAT:
CC FAT is CC bike fat version with wider wheel set match off road Maxxis fat tire 26*4.0”. Best electric hunting bike under $5000, full suspension fat tire ebike with throttle, fat tire electric mountain bike with max speed up to 35mph ebike, long rang up to 50miles(80kms) per charge.
If you are looking for a prefect adventure ebike for all kinds of outdoor activities like hunting, fishing, camping or expedition in nature, CC FAT is the super ebike for you.
Features
MAX 35 mph
top speed
1500w
Bafang Motor M620
low-step
Unique frame structure
26*4.8
Fat tire
All-terrain challenge:
Looking for off-road adventure? Our vehicles are safe, reliable, and built for any terrain – sand, snow or rugged forests. Experience the thrill today!

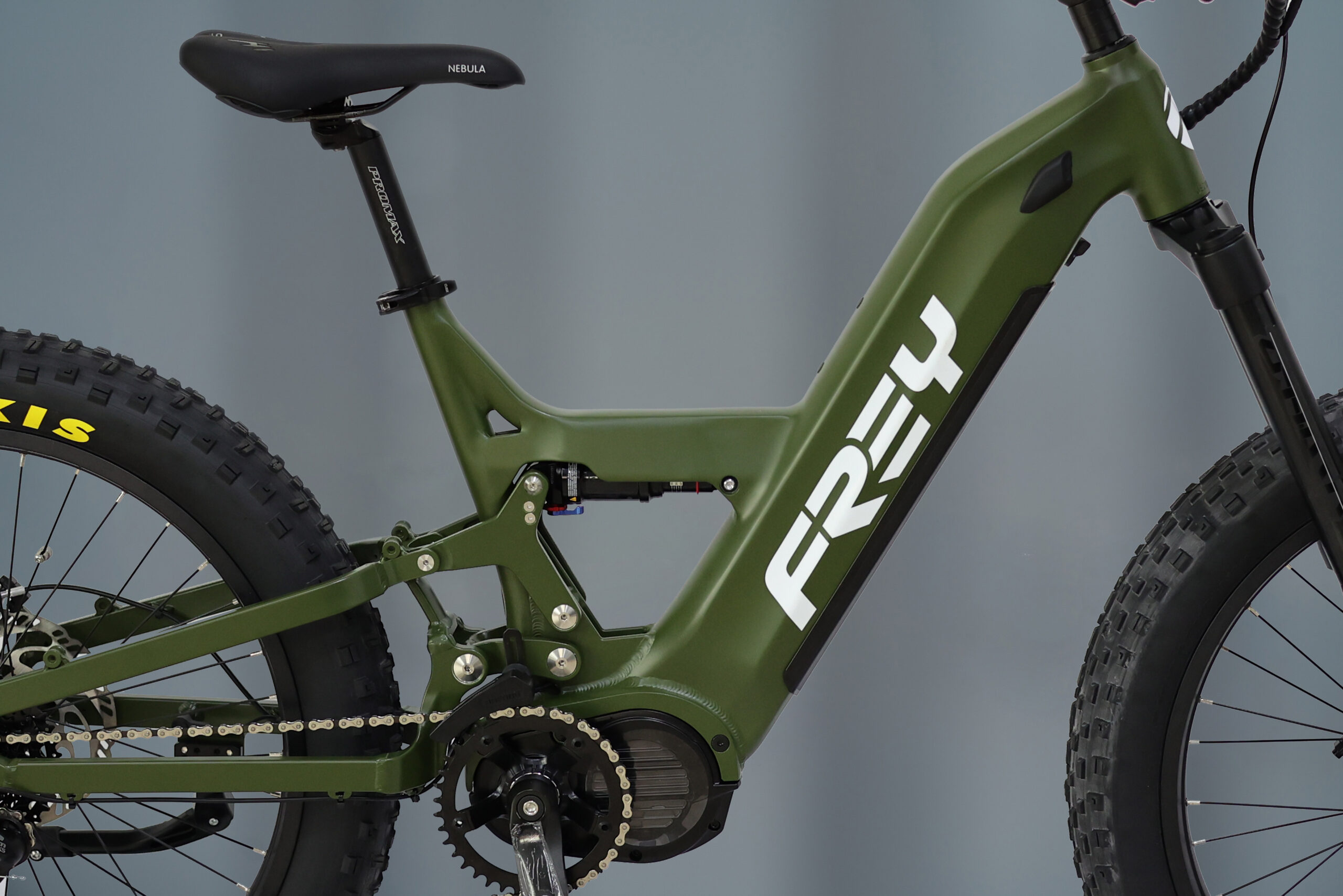

Step through full suspension frame:
Fat tire full suspension ebike with front 140mm rear 110mm travel, electric trail bike geometry, Unique step through design suitable for more people to enjoy all kinds of outdoor activities for enders, women, and it’s very friendly to newbie off-road ebike riders.
Bafang M620 ebike system:
Rated 1000w peak power 1500w ebike with mid-drive motor delivers max 160Nm torque, good for all terrain off road biking to tackle rugged terrains, best value 1000w fat tire ebike.
Specs
| Motor | BaFang M620 1000W system, 160Nm |
|---|---|
| Battery | Downtube integrated 48V21AH (1008WH) |
| Charger | Output 54.6V/5A, AC100-240V |
| Frame | 6061#alloy, 26″fat, step-through full suspension |
| Fork | Inverted Fat Bike Air Suspension Fork |
| Rear Shock | Rockshox Monarch RL 165*38mm |
| Stem | Alloy, 50mm length |
| Handlebar | Alloy, 25mm rise, 780mm, 31.8mm clamp |
| Wheelset | 26″*80mm width, alloy rims for fat bike |
| Tires | Maxxis 26*4.0″ fat tires |
| Brakes | Magura MT5e 4-piston 203/203mm |
| Drivetrain | SHIMANO ALIVIO 9S |
| Weight | 36kg |
| Max. payload | 140kgs |
Geometry
All measurements are in millimeters unless otherwise stated.
| CC FAT | |
|---|---|
| FRAME | UNIVERSAL |
| A TOP TUBE HORIZONTAL | 657 |
| B SEAT TUBE ANGLE | 74° |
| C CHAINSTAYS | 478.4 |
| D HEAD TUBE ANGLE | 66° |
| E WHEELBASE | 1279.4 |
| G REACH | 472.6 |
| H STACK | 630.6 |
| I SEAT TLBE | 439 |
| J BB DRCP | 11.3 |
| K HEAD TUBE LENGTH | 140 |
| L STANDOVER | 698.4 |
Sizing
| Rider Height | Rider Height | |
| size | 160-190cm | 5’3” – 6’3″ |

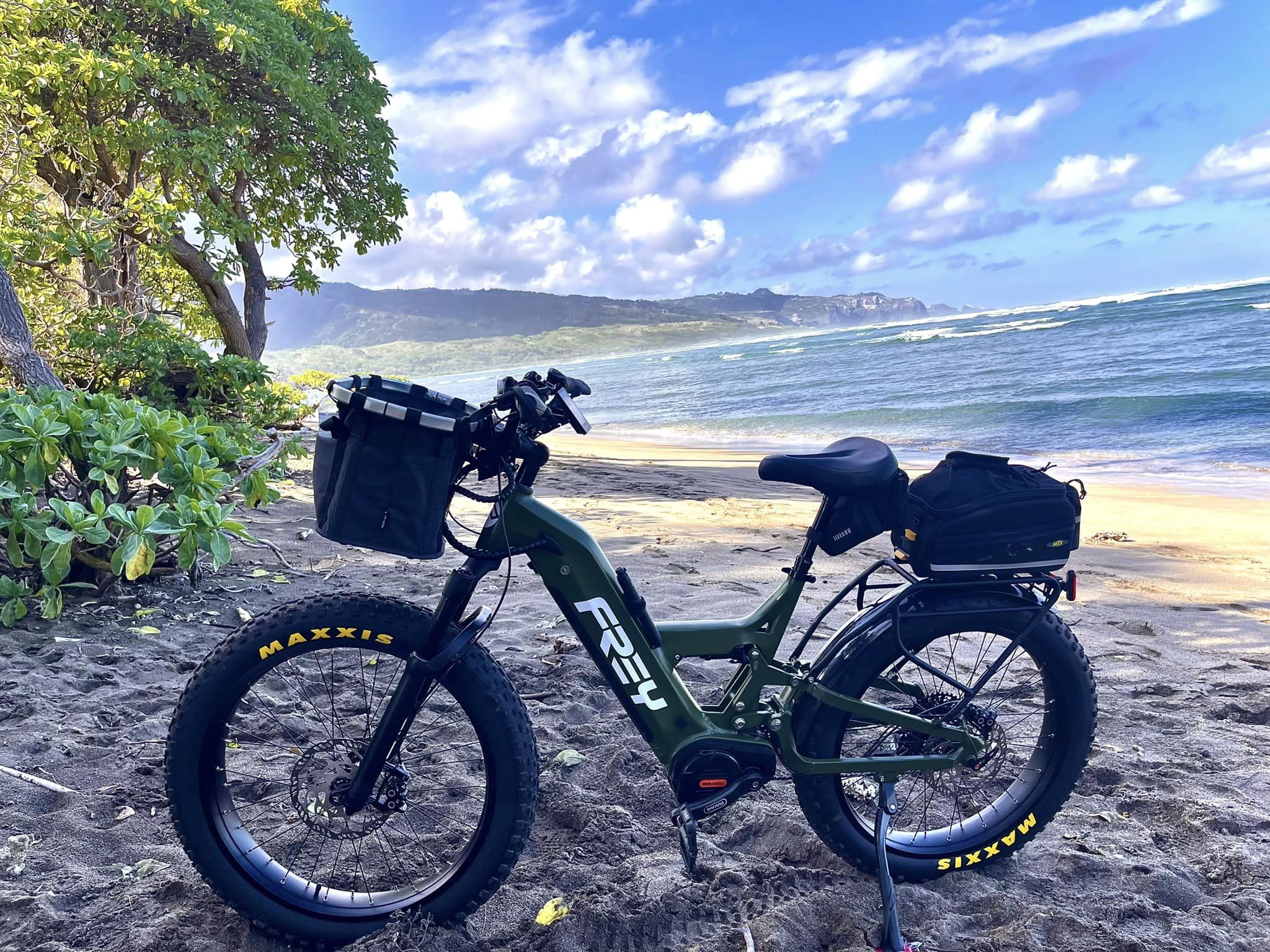

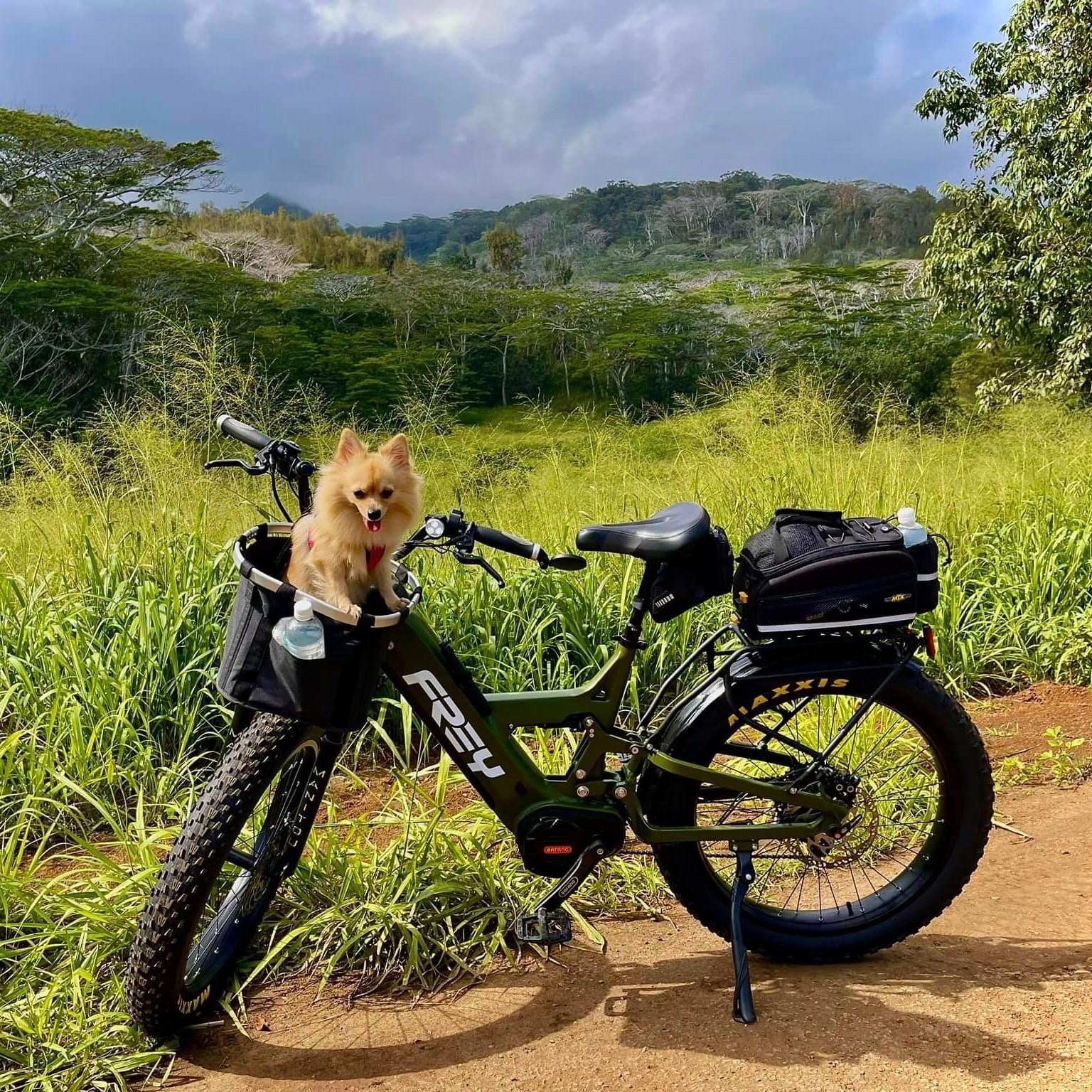

SCENES

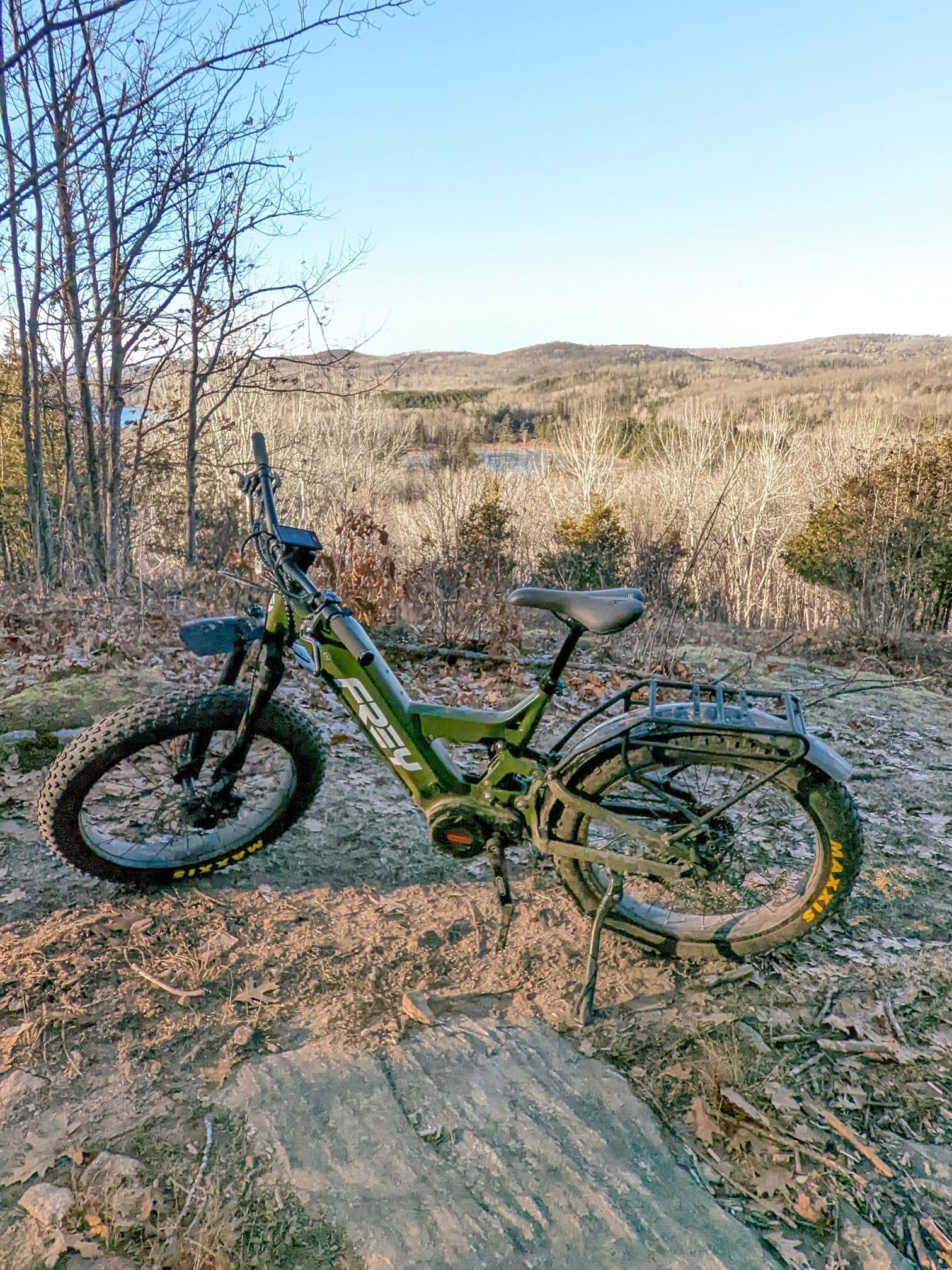

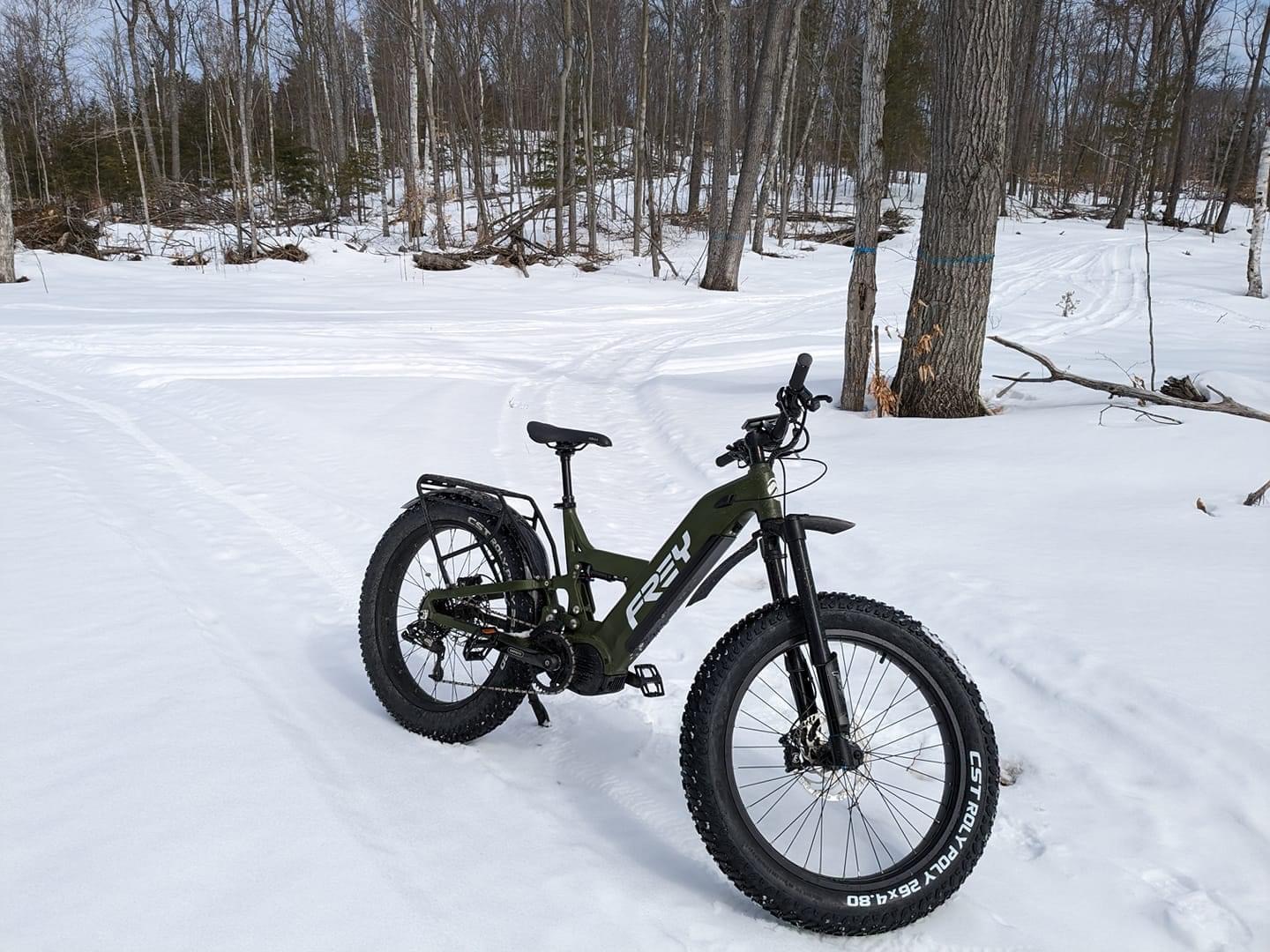

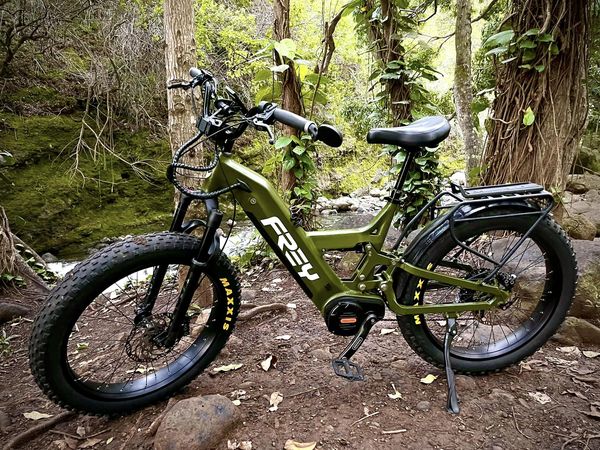

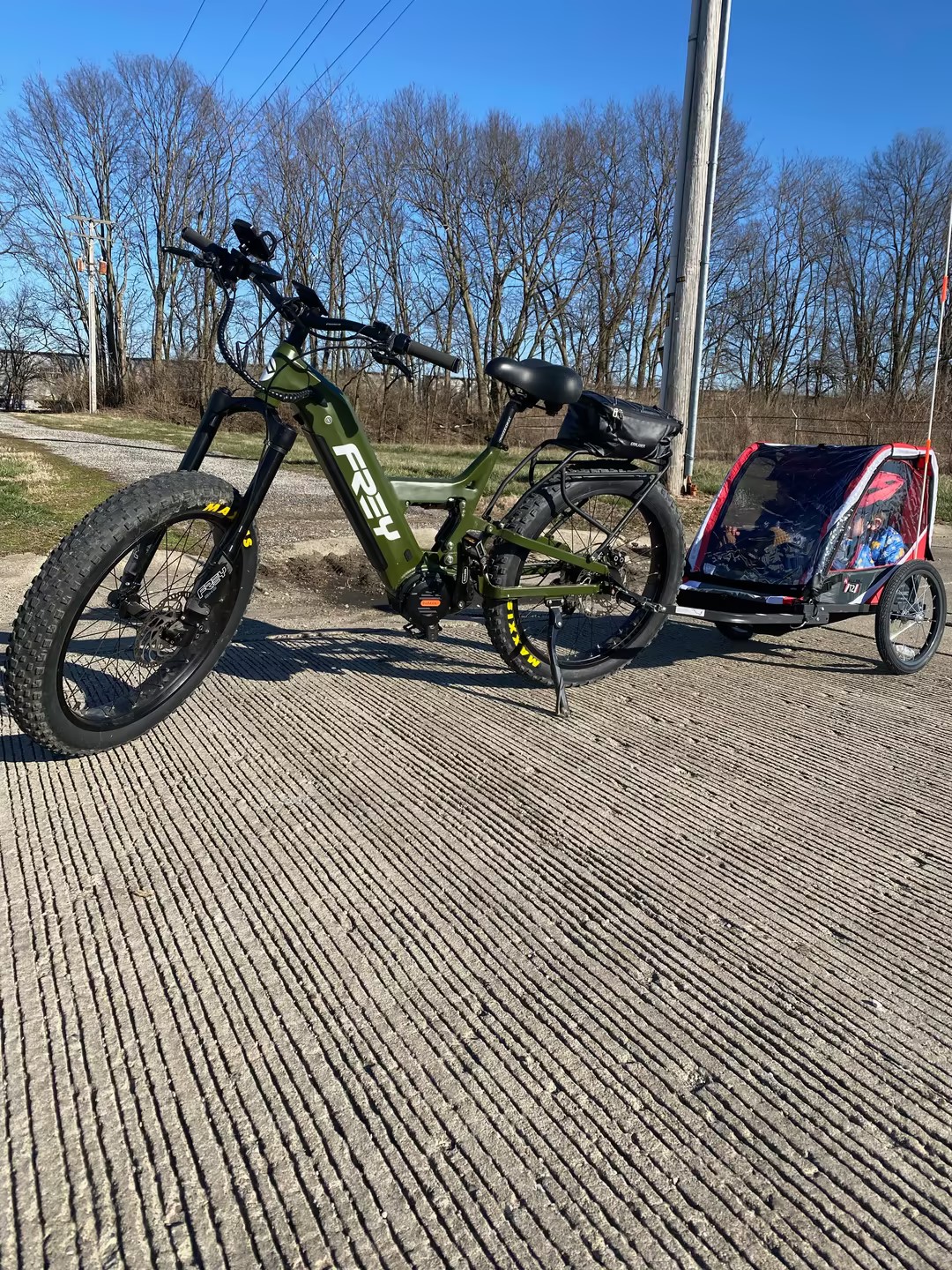

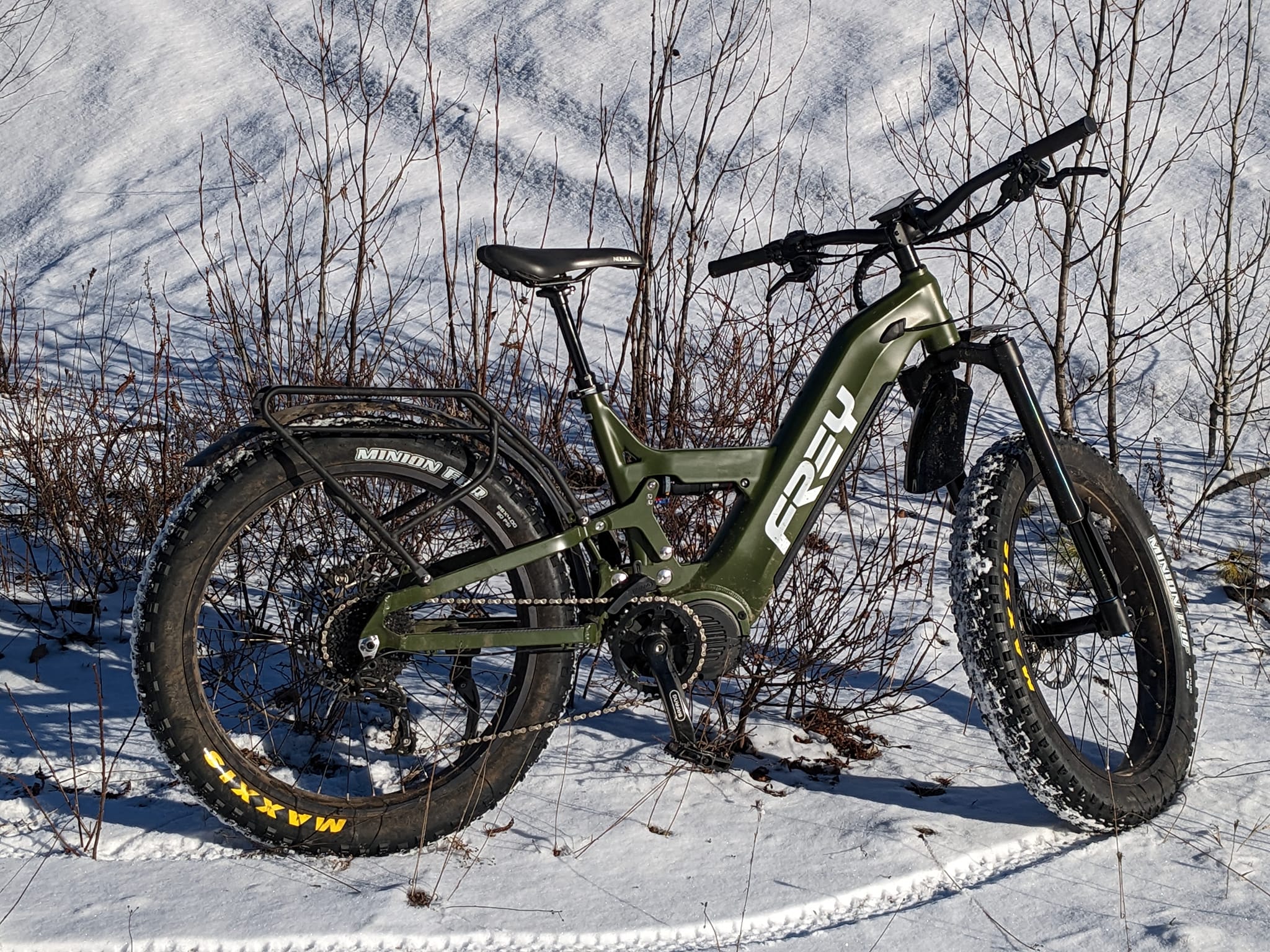

If you are in search of your next adventure… The CC Fat could be the best companion for it…. Well in this case, the next to the best companion!
I've been searching for a high-quality electric bike, and the Freybike CCFAT is absolutely my top choice. Its performance is simply astonishing, and the battery life exceeds my expectations. The comfort and stability during rides are top-notch as well. I can finally explore my city without worrying about charging or maintenance issues. Highly recommend Freybike!
I've been using FREY AM1000-V6 for several months now, and it has consistently delivered exceptional performance. Its durability and reliability have exceeded my expectations, and I couldn't be more satisfied with my purchase.
Steve Brunke –
Looking forward to my cc fat arriving, but thats months away yet. So far the customer service from frey has been great. I hope their bikes live up to the hype.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Russell Duarte –
agreed, I’m confident it will be. With all stuff going on in the world, Frey still appears to be on schedule in its design of the Cc Fat.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
